Camtec CPS-EC480 Series AC/DC Power Supply & Battery Charger
The Camtec CPS-EC480 Series is a high-precision, DIN rail-mounted DC power supply and battery charger engineered for high-performance and long-life operation in demanding industrial environments. With a continuous output power of up to 480W and efficiency levels reaching 92%, it is a reliable solution for applications such as DC motor drives, battery-backed control systems, industrial automation, and DC-UPS infrastructure.
Read More
Features
- CV/CC Auto Mode: Seamlessly switches between constant voltage and constant current modes, supporting both load operation and battery charging without voltage instability or foldback.
- Real-Time Output Monitoring & DC-OK Relay: Integrated 0–5V current monitor output provides accurate, live feedback of load consumption, while a built-in DC-OK Relay indicates loss of input power, low output voltage, or thermal shutdown - enabling reliable system supervision and fault detection.
- Adjustable Output Ranges: High-precision potentiometers allow fine-tuning of both voltage and current across models ranging from 24Vdc to 300Vdc output.
- Inbuilt Protection: Includes continuous short-circuit protection, over-voltage shutdown, thermal shutdown with auto-recovery, and open-circuit safety.
- DIN-Rail Mount & Natural Cooling: Compact metal housing with tool-free DIN rail mounting and convection cooling ensures fast installation and reliable thermal performance in tight spaces.
- Conformal Coating Option: Available with a durable acrylic coating to protect against moisture, dust, and temperature cycling in harsh or outdoor-exposed environments.
Specifications
Selection Table

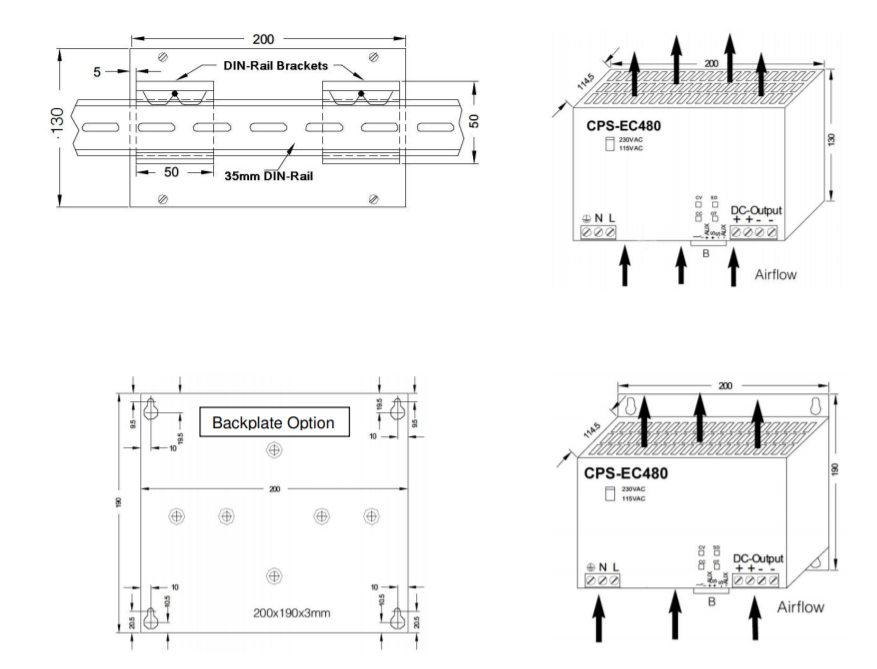

Technical Illustrations
Downloads
| GENERAL | |
|---|---|
| AC Input Voltage | 90...132Vac / 184...265Vac (115/230Vac input selector, factory setting is 230Vac) |
| DC Input Voltage | 250Vdc...375Vdc (input selector set to 230Vac) |
| AC Input Rating |
115Vac <9A; 230Vac < 4.9A |
| DC Input Rating |
250Vdc<2.4A; 375Vdc<1.6A (input selector set to 230Vac rated) |
| DC Output Voltage | Refer to 'Selection' or 'Find The Right Model' Tables |
| DC Output Current | Refer to 'Selection' or 'Find The Right Model' Tables |
| Frequency | 47-63Hz |
| Rated Power | 480W Cont. (90-132Vac, 184-264Vac) |
| Potentiometer C/V Setting | 15 turn high precision, protective forced isolation to the inputs and the output 3000Vac |
| Operation Failure Relay | Yes, break contact, protective forced isolation to the inputs and the output 3000Vac |
| Sense Function | Compensation 1V per load line |
| Remote Shutdown | Yes, protective forced isolation to the inputs and the output 3000Vac |
| Inhibit Function (Interlock) | Yes, protective forced isolation to the inputs and the output 3000Vac |
| Derating | +60°C...+70°C 2.5%/°C |
| Accuracy | < ± 1.5% interface |
| Load Regulation | < ± 0.05% 0-100% |
| Start up from Shutdown | Typ. 320ms |
| Start up from Inhibit | Typ. 320ms |
| Response to Load Change | <1ms 10-100%, 100-10% |
| Base Load | None required (open circuit proof) |
| Efficiency 230Vac | Up to 92% at 90% load |
| Short Circuit Protection | Continuous |
| Open Circuit Proof | Continuous |
| Temperature Control | Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm) |
| Hold Up Time | >50ms 230Vac |
| Inrush Current | <9,8Aeff < 13.8Apeak (230Vac) active inrush current limiter |
| Soft Start | 100ms typical |
| RELIABILITY | |
|---|---|
| Isolation paths | > 8mm creepage distance & clearance paths |
| Input to Output Isolation | 3000Vac |
| Input to Case Isolation | 2500Vac |
| Output to Case | 500Vdc , models ≥60Vdc 2300Vdc |
| Meantime By Failure (MTBF) | 400000h (IEC61709) |
| Meantime To Failure (MTTF) | 148312h (IEC61709) |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Natural Convection |
| Ambient Operating Temp. | - 25°C…+70°C |
| Ambient Storage Temp. | - 40°C…+85°C |
| Environment | Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II |
| STANDARDS AND APPROVALS | |
|---|---|
| ROHS | 2011/65/EG confirmed |
| REACH | EG No. 1907/2006 confirmed |
| EMI | EN55022 class B |
| EMS | EN61000-6-2,3 |
| Safety | EN60950-1, EN60204-1 |
| Safety class 1(A) | VDE0805, VDE0100 |
| MECHANICAL | |
|---|---|
| Dimensions (HxWxD) | 130x200x114,5 mm |
| Weight | 3Kg |
| AC Terminals | Input Screw Terminal 3x AWG20 – AWG6 / 0,5 – 16mm² (L,N,PE) |
| DC Terminals | Output Screw Terminal 4x AWG20 – AWG6 / 0,5 – 16mm² (+ + / - - ) |
| MODEL | CPS-EC480.024(R2) | CPS-EC480.036(R2) | CPS-EC480.048(R2) | CPS-EC480.060(R2) | CPS-EC480.072(R2) |
|---|---|---|---|---|---|
| Rated DC Voltage | 24Vdc | 36Vdc | 48Vdc | 60Vdc | 72Vdc |
| Rated DC Current | 20A | 13,3A | 10A | 8A | 6,7A |
| DC Voltage Setting Range | 24–30V | 36–45V | 48–58V | 60–75V | 72–90V |
| DC Current Setting Range | 10–21A | 6,6–14A | 5,0–10,5A | 4,0–8,4A | 3,4–7A |
| Overvoltage Protection | 34Vdc | 50Vdc | 67Vdc | 84Vdc | 100Vdc |
| Ripple Peak 230Vac 20MHz | 40mV | 40mV | 100mV | 150mV | 200mV |
| MODEL | CPS-EC480.110(R2) | CPS-EC480.150(R2) | CPS-EC480.220(R2) | CPS-EC480.300(R2) | |
|---|---|---|---|---|---|
| Rated DC Voltage | 110Vdc | 150Vdc | 220Vdc | 300Vdc | |
| Rated DC Current | 4,4A | 3,2A | 2,2A | 1,6A | |
| DC Voltage Setting Range | 110–137,5V | 132–180V | 220–264V | 264–360V | |
| DC Current Setting Range | 2,2–4,6A | 1,6–3,3A | 1,1–2,3A | 0,8–1,7A | |
| Overvoltage Protection | 154Vdc | 210Vdc | 310Vdc | 420Vdc | |
| Ripple Peak 230Vac 20MHz | 300mV | 400mV | 400mV | 400mV |
| GENERAL | |
|---|---|
| AC Input Voltage | 90...132Vac / 184...265Vac (115/230Vac input selector, factory setting is 230Vac) |
| DC Input Voltage | 250Vdc...375Vdc (input selector set to 230Vac) |
| AC Input Rating |
115Vac <9A; 230Vac < 4.9A |
| DC Input Rating |
250Vdc<2.4A; 375Vdc<1.6A (input selector set to 230Vac rated) |
| DC Output Voltage | Refer to 'Selection' or 'Find The Right Model' Tables |
| DC Output Current | Refer to 'Selection' or 'Find The Right Model' Tables |
| Frequency | 47-63Hz |
| Rated Power | 480W Cont. (90-132Vac, 184-264Vac) |
| Potentiometer C/V Setting | 15 turn high precision, protective forced isolation to the inputs and the output 3000Vac |
| Operation Failure Relay | Yes, break contact, protective forced isolation to the inputs and the output 3000Vac |
| Sense Function | Compensation 1V per load line |
| Remote Shutdown | Yes, protective forced isolation to the inputs and the output 3000Vac |
| Inhibit Function (Interlock) | Yes, protective forced isolation to the inputs and the output 3000Vac |
| Derating | +60°C...+70°C 2.5%/°C |
| Accuracy | < ± 1.5% interface |
| Load Regulation | < ± 0.05% 0-100% |
| Start up from Shutdown | Typ. 320ms |
| Start up from Inhibit | Typ. 320ms |
| Response to Load Change | <1ms 10-100%, 100-10% |
| Base Load | None required (open circuit proof) |
| Efficiency 230Vac | Up to 92% at 90% load |
| Short Circuit Protection | Continuous |
| Open Circuit Proof | Continuous |
| Temperature Control | Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm) |
| Hold Up Time | >50ms 230Vac |
| Inrush Current | <9,8Aeff < 13.8Apeak (230Vac) active inrush current limiter |
| Soft Start | 100ms typical |
| RELIABILITY | |
|---|---|
| Isolation paths | > 8mm creepage distance & clearance paths |
| Input to Output Isolation | 3000Vac |
| Input to Case Isolation | 2500Vac |
| Output to Case | 500Vdc , models ≥60Vdc 2300Vdc |
| Meantime By Failure (MTBF) | 400000h (IEC61709) |
| Meantime To Failure (MTTF) | 148312h (IEC61709) |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Natural Convection |
| Ambient Operating Temp. | - 25°C…+70°C |
| Ambient Storage Temp. | - 40°C…+85°C |
| Environment | Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II |
| STANDARDS AND APPROVALS | |
|---|---|
| ROHS | 2011/65/EG confirmed |
| REACH | EG No. 1907/2006 confirmed |
| EMI | EN55022 class B |
| EMS | EN61000-6-2,3 |
| Safety | EN60950-1, EN60204-1 |
| Safety class 1(A) | VDE0805, VDE0100 |
| MECHANICAL | |
|---|---|
| Dimensions (HxWxD) | 130x200x114,5 mm |
| Weight | 3Kg |
| AC Terminals | Input Screw Terminal 3x AWG20 – AWG6 / 0,5 – 16mm² (L,N,PE) |
| DC Terminals | Output Screw Terminal 4x AWG20 – AWG6 / 0,5 – 16mm² (+ + / - - ) |
| MODEL | CPS-EC480.024(R2) | CPS-EC480.036(R2) | CPS-EC480.048(R2) | CPS-EC480.060(R2) | CPS-EC480.072(R2) |
|---|---|---|---|---|---|
| Rated DC Voltage | 24Vdc | 36Vdc | 48Vdc | 60Vdc | 72Vdc |
| Rated DC Current | 20A | 13,3A | 10A | 8A | 6,7A |
| DC Voltage Setting Range | 24–30V | 36–45V | 48–58V | 60–75V | 72–90V |
| DC Current Setting Range | 10–21A | 6,6–14A | 5,0–10,5A | 4,0–8,4A | 3,4–7A |
| Overvoltage Protection | 34Vdc | 50Vdc | 67Vdc | 84Vdc | 100Vdc |
| Ripple Peak 230Vac 20MHz | 40mV | 40mV | 100mV | 150mV | 200mV |
| MODEL | CPS-EC480.110(R2) | CPS-EC480.150(R2) | CPS-EC480.220(R2) | CPS-EC480.300(R2) | |
|---|---|---|---|---|---|
| Rated DC Voltage | 110Vdc | 150Vdc | 220Vdc | 300Vdc | |
| Rated DC Current | 4,4A | 3,2A | 2,2A | 1,6A | |
| DC Voltage Setting Range | 110–137,5V | 132–180V | 220–264V | 264–360V | |
| DC Current Setting Range | 2,2–4,6A | 1,6–3,3A | 1,1–2,3A | 0,8–1,7A | |
| Overvoltage Protection | 154Vdc | 210Vdc | 310Vdc | 420Vdc | |
| Ripple Peak 230Vac 20MHz | 300mV | 400mV | 400mV | 400mV |
Find the Right Model
| Model Number | Input Voltage (Vac) | Output Voltage (Vdc) | Output Current (A) | ||
|---|---|---|---|---|---|
|
CPS-EC480.024(R2) | 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) | 24Vdc (Adj. 24 - 30Vdc) | 20A (Adj. 10 - 21A) | |
|
|
CPS-EC480.036(R2) | 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) | 36Vdc (Adj. 36 - 45Vdc) | 13.3A (Adj. 6.6 - 14A) | |
|
|
CPS-EC480.048(R2) | 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) | 48Vdc (Adj. 48 - 58Vdc) | 10A (Adj. 5 - 10.5A) | |
|
|
CPS-EC480.060(R2) | 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) | 60Vdc (Adj. 60 - 75Vdc) | 8A (Adj. 4 - 8.4A) | |
|
|
CPS-EC480.072(R2) | 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) | 72Vdc (Adj. 72 - 90Vdc) | 6.7A (Adj. 3.4 - 7A) | |
|
|
CPS-EC480.110(R2) | 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) | 110Vdc (Adj. 110 - 137.5Vdc) | 4.4A (Adj. 2.2 - 4.6A) | |
|
|
CPS-EC480.150(R2) | 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) | 150Vdc (Adj. 132 - 180Vdc) | 3.2A (Adj. 1.6 - 3.3A) | |
|
|
CPS-EC480.220(R2) | 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) | 220Vdc (Adj. 220 - 264Vdc) | 2.2A (Adj. 1.1 - 2.3A) | |
|
|
CPS-EC480.300(R2) | 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) | 300Vdc (Adj. 264 - 360Vdc) | 1.6A (Adj. 0.8 - 1.7A) |
