Victron BLUE SMART IP65 Battery Charger
The Victron Blue Smart IP65 Charger is a reliable and high-efficiency solution designed for professionals and enthusiasts who demand superior battery management. Whether you're charging lead-acid or Li-ion batteries, this smart charger delivers precision and durability for various applications.
Read More
Features
- Seven-Step Smart Charging Algorithm: Ensures optimal charging for any battery type, prolonging battery life and enhancing performance.
- Recovery of Deeply Discharged Batteries: Revives fully discharged batteries by delivering low current until normal charging resumes.
- Li-ion Battery Mode: Includes a dedicated charging algorithm for Li-ion (LiFePO₄) batteries with automatic under-voltage protection reset.
- Durable and Weatherproof Design: IP65-rated for resistance against water, dust, and chemicals, ensuring reliable operation in harsh conditions.
- Energy Efficient: With up to 95% efficiency, the charger generates less heat and reduces power consumption to just 0.5W in standby mode.
- Temperature Compensation: Automatically adjusts charge voltage based on ambient temperature for lead-acid batteries, ensuring safe and efficient charging.
Specifications
Selection Table
Technical Illustrations
Downloads
| GENERAL | |
|---|---|
| Can be used as power supply | Yes |
| Back current drain | 0,7 Ah/month (1 mA) |
| Protection | Reverse polarity Output short circuit Over temperature |
| ENVIRONMENTAL | |
|---|---|
| Operating Temperature | -20°C to +50°C full rated output to 30°C (cables retain flexibility at low temperature) |
| Humidity | Max 95% non-condensing |
| STANDARDS AND APPROVALS | |
|---|---|
| Safety | EN60335.1, EN60335-2-29 |
| Emission | EN55014-1, EN61000-6-3, EN61000-3-2 |
| Immunity | EN55014-2, EN61000-6-1, EN61000-6-2, EN61000-3-3 |
| MECHANICAL | |
|---|---|

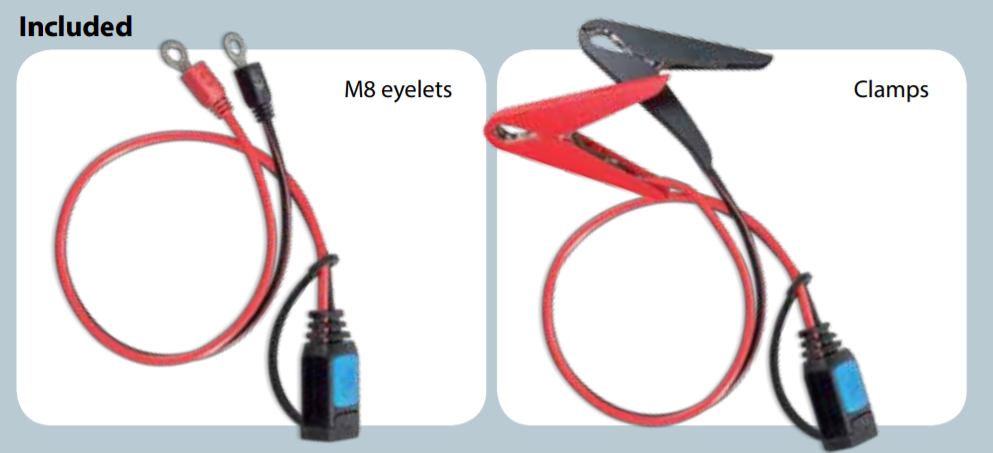

| Battery Connection | Black and red cable of 1.5meters |
| 230Vac Connection | Cable of 1.5meters with AS/NZ3112 plug |
| Protection category | IP65 (splash and dust proof) |
| Dimensions | IP65s 12V 4/5A: 45x81x182 mm IP65 12V 7A 24V 5A: 47x95x190 mm IP65 12V 10/15A 24V 8A: 60x105x190 mm |
| Weight | 0.9kg |
| Blue Smart IP65 Charger | ||
|---|---|---|
| Model | 12 V 4/5/7/10/15 A | 24 V 5/8 A |
| Input voltage range | 180-265 VAC | 180-265 VAC |
| Efficiency | 94% | 95% |
| Standby power consumption | 0,5 W | 0,5 W |
| Charge voltage 'absorption' | Normal: 14,4 V High: 14,7 V Li-ion: 14,2 V |
Normal: 28,8 V High: 29,4 V Li-ion: 28,4 V |
| Charge voltage 'float' | Normal: 13,8 V High: 13,8 V Li-ion: 13,5 V |
Normal: 27,6 V High: 27,6 V Li-ion: 27,0 V |
| Charge voltage 'storage' | Normal: 13,2 V High: 13,2 V Li-ion: 13,5 V |
Normal: 26,4 V High: 26,4 V Li-ion: 27,0 V |
| Charge current | 4 / 5 / 7 / 10 / 15 A | 5 / 8 A |
| Low current mode | 2 / 2 / 2 / 3 / 4 A | 2 / 3 A |
| Temperature compensation (lead-acid batteries only) |
16 mV/ºC | 32 mV/ºC |
| GENERAL | |
|---|---|
| Can be used as power supply | Yes |
| Back current drain | 0,7 Ah/month (1 mA) |
| Protection | Reverse polarity Output short circuit Over temperature |
| ENVIRONMENTAL | |
|---|---|
| Operating Temperature | -20°C to +50°C full rated output to 30°C (cables retain flexibility at low temperature) |
| Humidity | Max 95% non-condensing |
| STANDARDS AND APPROVALS | |
|---|---|
| Safety | EN60335.1, EN60335-2-29 |
| Emission | EN55014-1, EN61000-6-3, EN61000-3-2 |
| Immunity | EN55014-2, EN61000-6-1, EN61000-6-2, EN61000-3-3 |
| MECHANICAL | |
|---|---|
| Battery Connection | Black and red cable of 1.5meters |
| 230Vac Connection | Cable of 1.5meters with AS/NZ3112 plug |
| Protection category | IP65 (splash and dust proof) |
| Dimensions | IP65s 12V 4/5A: 45x81x182 mm IP65 12V 7A 24V 5A: 47x95x190 mm IP65 12V 10/15A 24V 8A: 60x105x190 mm |
| Weight | 0.9kg |
| Blue Smart IP65 Charger | ||
|---|---|---|
| Model | 12 V 4/5/7/10/15 A | 24 V 5/8 A |
| Input voltage range | 180-265 VAC | 180-265 VAC |
| Efficiency | 94% | 95% |
| Standby power consumption | 0,5 W | 0,5 W |
| Charge voltage 'absorption' | Normal: 14,4 V High: 14,7 V Li-ion: 14,2 V |
Normal: 28,8 V High: 29,4 V Li-ion: 28,4 V |
| Charge voltage 'float' | Normal: 13,8 V High: 13,8 V Li-ion: 13,5 V |
Normal: 27,6 V High: 27,6 V Li-ion: 27,0 V |
| Charge voltage 'storage' | Normal: 13,2 V High: 13,2 V Li-ion: 13,5 V |
Normal: 26,4 V High: 26,4 V Li-ion: 27,0 V |
| Charge current | 4 / 5 / 7 / 10 / 15 A | 5 / 8 A |
| Low current mode | 2 / 2 / 2 / 3 / 4 A | 2 / 3 A |
| Temperature compensation (lead-acid batteries only) |
16 mV/ºC | 32 mV/ºC |

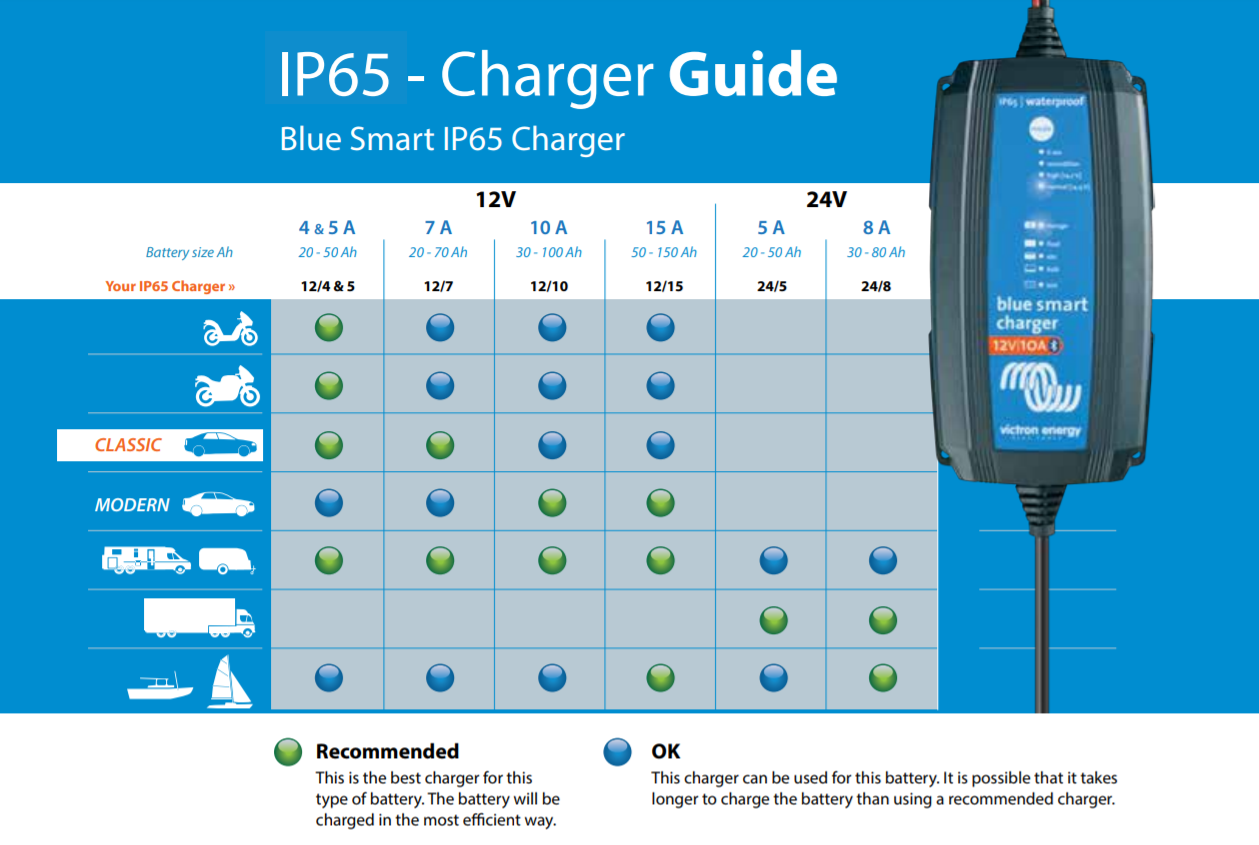

Find the Right Model
| Model Number | Input Voltage (Vac) | Output Voltage (Vdc) | Output Current (A) | ||
|---|---|---|---|---|---|
|
Blue Smart IP65 Charger 6V/12V-1.1 230V AU/NZ | 100...250Vac 50/60Hz | 6.9Vdc (Float) / 13.8Vdc (Float) | 1.1A | |
|
|
Blue Smart IP65s Charger 12/4(1) 230V AU/NZ | 100...250Vac 50/60Hz | 13.8Vdc (Float) | 4A | |
|
|
Blue Smart IP65s Charger 12/5(1) 230V AU/NZ | 100...250Vac 50/60Hz | 13.8Vdc (Float) | 5A | |
|
|
Blue Smart IP65 Charger 12/7(1) 230V AU/NZ | 100...250Vac 50/60Hz | 13.8Vdc (Float) | 7A | |
|
|
Blue Smart IP65 Charger 12/10(1) 230V AU/NZ | 100...250Vac 50/60Hz | 13.8Vdc (Float) | 10A | |
|
|
Blue Smart IP65 Charger 12/15(1) 230V AU/NZ | 100...250Vac 50/60Hz | 13.8Vdc (Float) | 15A | |
|
|
Blue Smart IP65 Charger 12/25(1) 230V AU/NZ | 100...250Vac 50/60Hz | 13.8Vdc (Float) | 25A | |
|
|
Blue Smart IP65 Charger 24/5(1) 230V AU/NZ | 100...250Vac 50/60Hz | 27.6Vdc (Float) | 5A | |
|
|
Blue Smart IP65 Charger 24/8(1) 230V AU/NZ | 100...250Vac 50/60Hz | 27.6Vdc (Float) | 8A | |
|
|
Blue Smart IP65 Charger 24/13(1) 230V AU/NZ | 100...250Vac 50/60Hz | 27.6Vdc (Float) | 13A |
